MS2106S ——————————————————————————————————————————————————

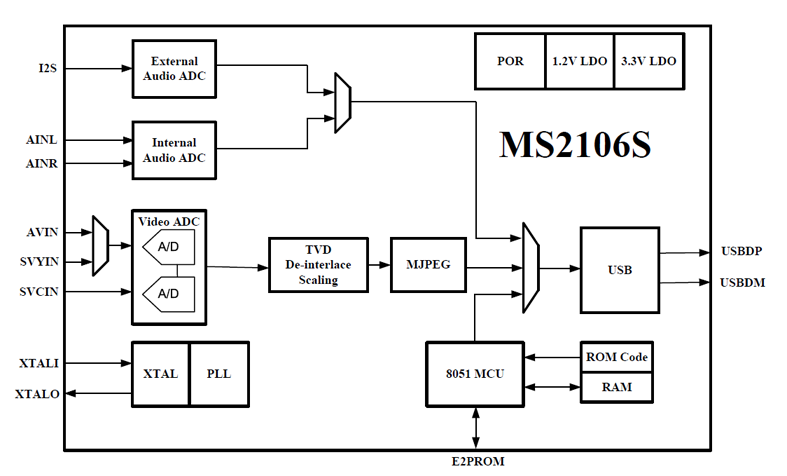

MS2106S is a video & audio processor chip. It can convert AV&S-Video signals to USB signal. It also can covert audio signal to USB signal, USB Video and Audio signals follow UVC and UAC protocol. It can play or recorded Video and Audio signals through USB interface. MS2106S support both YUV and MJPEG mode, As the built-in MCU, using the ROM code and without driver installation, MS2106S is very simple to use.







On-chip 1T 8051 MCU

Supports AV full format video input: NTSC and PAL

On-chip ROM/RAM/IO/Timer

Supports S-Video full format video input NTSC and PAL

Rom code included

Automatic format & interface detection


On-chip 3D decoder/De-interlace/Scalar Module

On-chip high speed USB function

Supports Brightness/Contrast/Saturation/Hue adjustment

USB video followed UVC protocol

Supports both MJPEG and YUV422

USB audio followed UAC protocol

MJPEG mode output resolutions:





Only one 12M crystal needed

It can output 12.288M clock for external audio ADC

YUV422 mode output resolution: 480×320@30Hz

Power & Reset


On-chip 3.3V&1.2V regulator

On-chip audio ADC

On-chip power on reset

Supports external audio ADC


USB UAC output 48kHz stereo

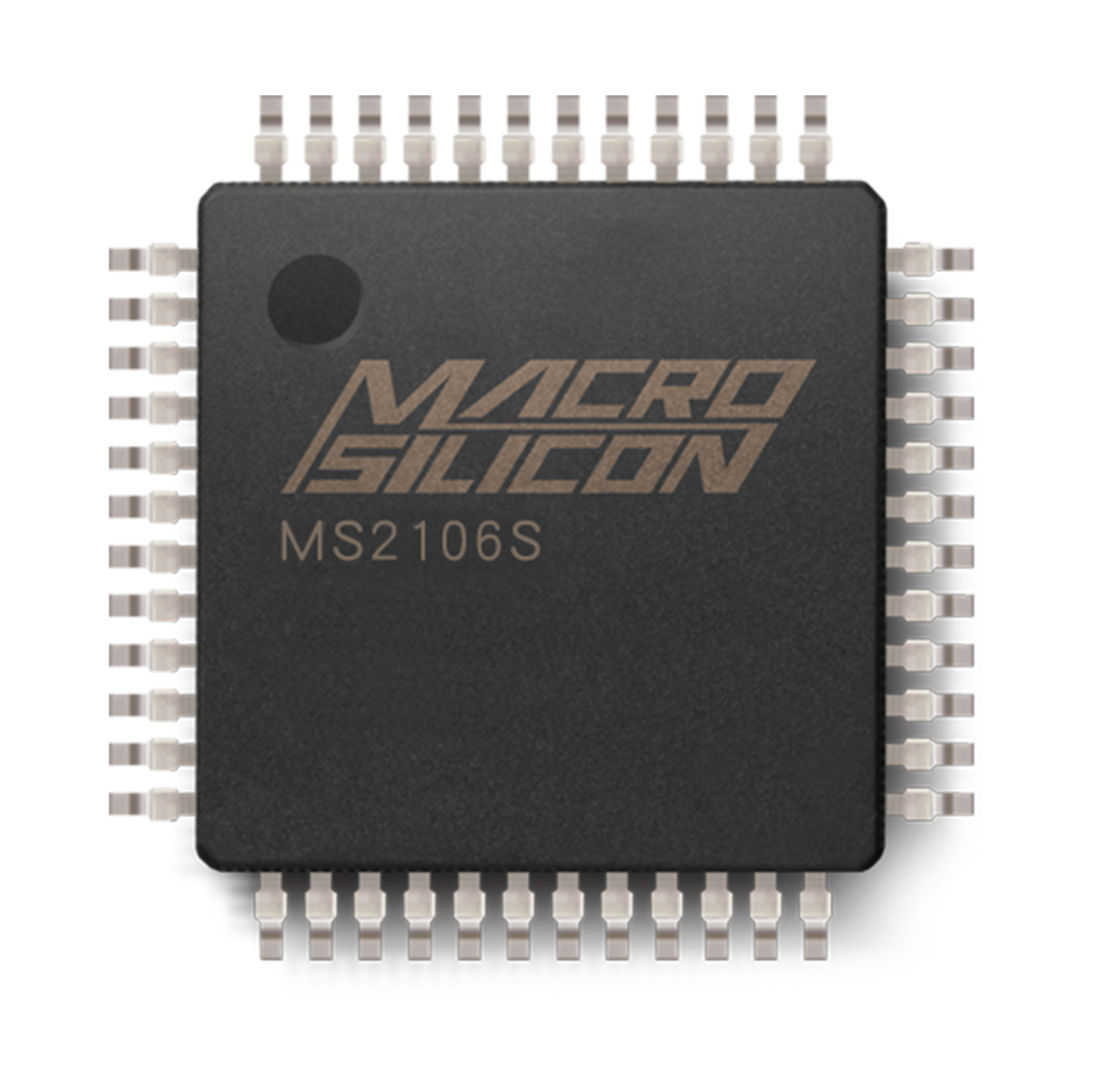

TQFP-48 plastic(7mm×7mm)


PB-free and RoHS
