MS9288A

————————————————————————————————————


MS9288A is a low-cost, low-power, high performance device, which consists of HDMI Transmitter, three 10-bit video Analog-to-Digital Converters and audio encoder, which can convert VGA or YPbPr signals to HDMI, maximum conversion rate of 165MHz. MS9288A support L/R audio input.MS9288A with embedded MCU and ROM code.







主要功能特征


Analog Video Input

Support Hot Plug

Triple 10-bit ADC

Support HDCP via external EEPROM

Maximum analog sampling rate up to 165MHz

Video Enhancement

Support analog input range: 0.45~1.1(P-P)

Black/White level expansion

Auto offset/phase adjustment

Color transition improvement

Support Sync-on-Green(SOG)

Dynamic peaking

VGA/YPbPr auto detection

Brightness, Saturation, Contrast, HUE adjustment

L/R Audio Input

System Control

Double channel 24-bit ADC

Master I2C Interface

Sample rate is 48KHz

I2C master interface for DDC control

Auto-mode Detection

Support external crystal at 24.576MHz

HDMI Output

Package

Support HDMI 1.3 and DVI1.0

QFN-48 plastic(6mmx6mm)

Integrated HDMI 1.3 TMDS core running at 165MHz

3.3V and 1.8V power supply

Support 24-bit color depth and Resolutions up to 1080P@60Hz

PB-free and RoHS compliant

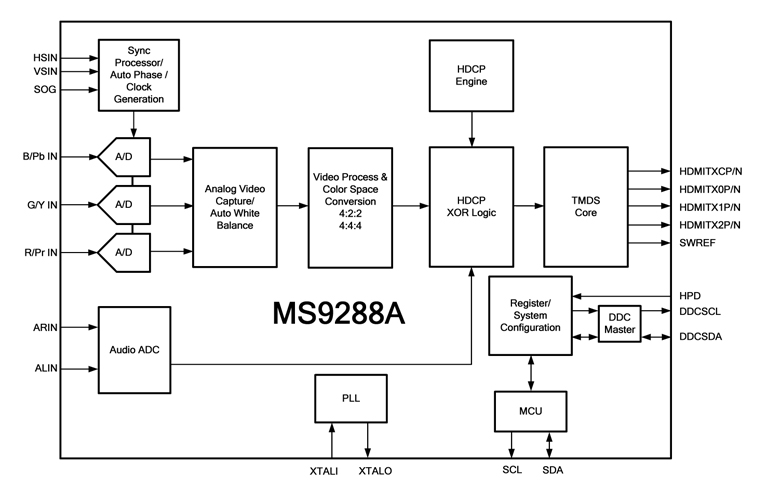

功能框图
