MS7024

————————————————————————————————————


The MS7024 is a TV encoder device targeting handheld, portable video applications such    as digital still cameras and similar portable embedded systems. The device is able to encode    the video signals and generate synchronization signals for NTSC and PAL standards. The device supported TV output formats are NTSC-M, NTSC-J, NTSC-433, PAL-B/D/G/H/I, PAL-M, PAL-N and PAL-60. The device accepts different data formats including RGB and YCrCb, via 24 bit/16bit/8bit multiplexed digital inputs.



    主要特征和优势


 Input Formatter

 Support analog AV and S-Video output

 Support 24-bit/16-bit/8-bit digital input

 Support formats NTSC-M, NTSC-J, NTSC-433, PAL-B/D/G/H/I,

 PAL-M, PAL-N and PAL-60

 Support various RGB and YCrCb  input data formats

 Support hot plug detection

 Support for input resolutions of 720×480 and 720×576 in interlace or

 progressive mode

 2-wire I2C Slave Interface

 Support ITU-R BT.601/656 standard input

 Package

 Adjustable brightness, contrast, saturation

 7mm×7mm 48pin plastic TQFP

 Fully programmable through serial port

 3.3V power supply

 Output Formatter

 PB-free and RoHS compliant

 Triple high quality 10-bit DAC

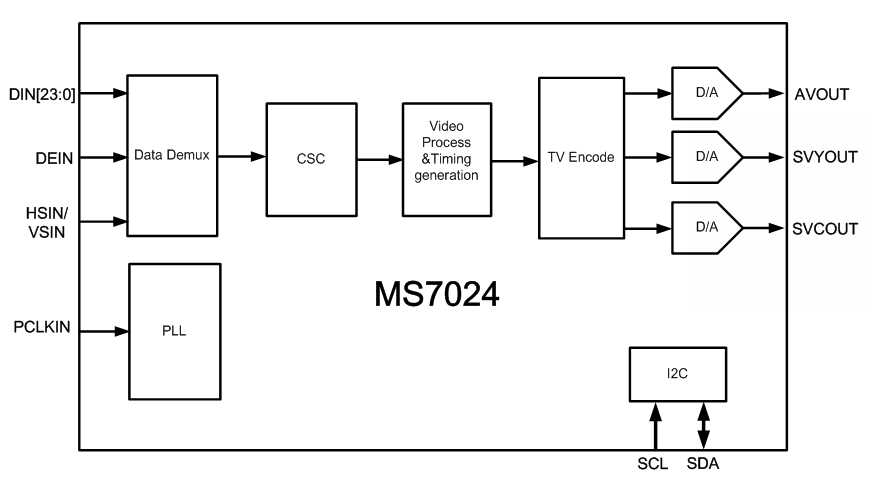

  功能框图
