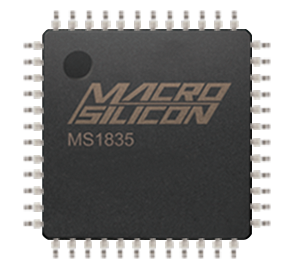

The MS1835 is a single chip RGB to CVBS/S-Video converter with embedded MCU and memory. It consists of 10-bit triple-ADC for RGB input, NTSC/PAL encoder with 10-bit DAC for output, integrated OSD function. It is capable of video enhancement, 3D noise reduction, brightness/saturation/sharpness and hue adjustment, which can help the designer acquire the required video quality. No programming technology can help customers to reduce production cost and cycle.




Analog Input

  Dynamic peaking

  10-bit triple-ADC

  Brightness, saturation, contrast and hue adjustable

  Maximum analog sampling rate up to 165MSPS

Embedded OSD

  Supports analog input range: 0.45V ~ 1.1V (P-P)

  Supports 1 bit DRCS character mode

  Supports RGBHV input

  Zoom in

  Auto offset/phase adjustment

  One OSD window with alpha-blending

  Supports input resolution up to 1080P

Embedded MCU

  Support interlace signal input

Output Format

Auto-mode Detection

  10-bit triple-DAC for component video output

Auto Position (Blank) Detection

  Supports CVBS and S-Video output


  Supports NTSC(J,M,4.43) and PAL(B,D,G,H,I,M,N,Nc,60)

  Independent horizontal and vertical scaling up and down from (1/8)x to 8x

2-wire I2C Master Interface

  Frame rate conversion


Video Enhancement

  TQFP-48 plastic(7mmX7mm)

  Black/white level expansion

  PB-free and RoHS compliant

  Color transition improvement
